Description
Sunpal Power’s hybrid systems combine the best of both on-grid and off-grid technologies. Like off-grid systems, they generate power that can be used or stored in either lithium or lead-acid battery banks. Additionally, any excess energy can be sold back to the state grid. These hybrid systems automatically adapt to fluctuations in power from the utility and the solar array, optimizing energy storage and usage. With various configuration options, users can control when and how much energy is stored or sold back to the grid, offering greater flexibility and efficiency.
- PV panel: Mono(Poly Optional)
- Inverter Power: 1000Watt/2000Watt/3000Watt/4000Watt/5000Watt
- Accessories: PV Cable/Y Branch Connector/MC4 Connector/PV Tools/Switch
- Mountings Rack: Metal Roof,Asphalt Shingle,Tile Roof,Tin Roof,Flat Concrete Roof
Mono Solar Panels
Peak Power Watts: 340W (SP340M-60H)
Maximum Power Voltage: 34.2V
Maximum Power Current: 9.94A
Open Circuit Voltage: 41.1V
Short Circuit Current: 10.6A
Dimensions:1698×1004×35 mm (66.85×39.53×1.38 inches)
Weight:18.7 kg (40.8 lb)

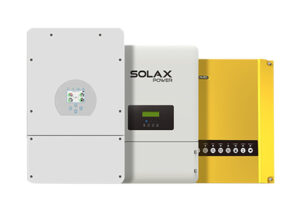

Hybrid Inverter

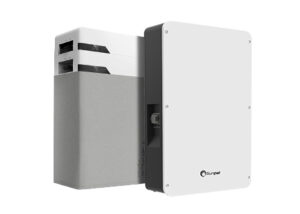

Lithium Battery
High power output with optimal energy efficiency
Modular, expandable system for flexibility
Safe battery technology with excellent compatibility
Natural cooling system for hassle-free installation
Certified for quality and reliability
Intelligent Monitoring System
Real-Time Display
Functionality Control
Plug & Play Installation
Years Of Historical Data View Power bill Savings Email System Alerts
Solar Panel Mounting Racks
We are dedicated to delivering stable, reliable, and cost-effective solutions for roof and ground mounting systems, as well as the construction of solar power stations for residential, commercial, government, and utility-scale projects.
PV Combiner Box
Flexible design,2-16 inputs optional
Wide range of DC input voltage, maximum input voltage up to 1500VDC
Specific PV fuse, both positive and negative terminal.
Solar panel system certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
